Activity 2.10: Game States

divider

The Idea

Your game has no beginning and no end. It starts mid-battle before the window has finished appearing, and when your third life goes it quietly puts everything back and carries on as though nothing happened. Both problems are the same problem: the game is always in exactly one situation, and nothing in your code says which.

The fix is a single variable holding a string.

A state machine is one variable and two questions

local gameState = "menu" will hold one of "menu", "playing", or "gameover". Two places ask what it says.

main.lua
function love.update(dt)
  if gameState ~= "playing" then
    return
  end


  -- the entire game, exactly as it was
end


function love.draw()
  -- the world, always


  if gameState == "menu" then
    -- a title
  elseif gameState == "gameover" then
    -- a score and a prompt
  end
end

That is the whole technique. No library, no table of transition rules, no pattern with a name in a book. Strings compare by value in Lua, so gameState == "gameover" does exactly what it looks like, and a string beats a number here purely because you can read it — nobody has ever debugged gameState == 2 happily.

Two lines, not sixty

The guard on love.update is an early return, and the reason matters. Wrapping the sixty-line body in an if would indent every line of it, so your next diff shows sixty changed lines of which none actually changed. Two lines at the top say the same thing and leave the rest of the function alone.

Notice that only update is gated. love.draw keeps running in every state, which is why the game-over screen can sit on top of your frozen final moment for free. Stopping the simulation and stopping the picture are different decisions, and separating them is most of what a state machine buys you.

isDown is a question; keypressed is a doorbell

This is the one genuinely new LÖVE concept on the page, and it is the difference between a menu that works and a menu you never see.

two kinds of input
-- A question, asked every frame: true sixty times a second
function love.update(dt)
  if love.keyboard.isDown("space") then
    fire()
  end
end


-- A doorbell, rung once, at the moment the key goes down
function love.keypressed(key)
  if key == "space" then
    startGame()
  end
end

love.keyboard.isDown reports a condition: it is true on all sixty frames of a one-second keypress. That is exactly right for holding left, and exactly wrong for a menu. love.keypressed is an event: LÖVE calls it once, when the key goes down, and does not call it again until you let go and press it again. Key repeat is off unless you switch it on with love.keyboard.setKeyRepeat(true).

Getting this wrong has a memorable symptom. You die with space held down, because you were shooting. If the restart is written with isDown, the very next frame sees space still down and starts a new game. I measured it: the game-over screen is on screen for one frame, 0.0167 seconds, and the player has no idea they died. The menu at startup does not appear at all.

The rule is general and outlives this game. Continuous actions want state; moments want events. Walking, steering, and holding fire are state. Jumping, pausing, confirming, and firing one shot per press are events.

Restarting is not setting gameState back

Task 1 flips the variable and nothing else, which is the honest first attempt and it is broken. lives is still zero, the enemies from your last run are still falling, and invuln is still counting down from whenever it last ran out. Under the harness the restarted game shows zero life icons and ends on the next thing you touch.

The reliable fix is one function that owns every value belonging to a single run, called from love.load and from the restart. If those two paths set the game up differently, the second game you play is not the same game as the first, and the difference will be a variable you forgot rather than one you chose.

main.lua
-- Belongs to the program. Made once, in love.load.
local ship
local font
local spawnEvery = 0.8
local gameState = "menu"


-- Belongs to one run. Made again every time a run starts.
local player
local bullets
local score
local lives

The state block splits in two, and the split is the point. Where a variable is declared now tells you how long it lives: the top group is made once and lasts as long as the program, the bottom group is made fresh for every run. Nothing enforces this — it is a convention that makes the forgotten-variable bug visible instead of invisible.

Rebuilding the player as a whole new table is easier than putting its fields back one at a time, and it cannot leave a field behind. The bare local player is nil until resetGame runs, the same shape ship has had since Activity 2.4.

Text in the middle of the window

main.lua
love.graphics.printf("GAME OVER", 0, 220, love.graphics.getWidth(), "center")

printf takes a width to work within and an alignment. Give it the whole window and "center" and it centers the line for you, so you never measure text and the title stays centered if the window changes size. The 0 is the left edge of that width, not the left edge of the text.

Dimming the world, and one fact about alpha

main.lua
love.graphics.setColor(0, 0, 0, 0.7)
love.graphics.rectangle("fill", 0, 0, love.graphics.getWidth(), love.graphics.getHeight())


love.graphics.setColor(1, 1, 1)

A fourth argument to setColor is alpha, on the same 0 to 1 scale as the colors. A black rectangle over the whole window at 0.7 leaves your game faintly visible underneath, which is why the game-over screen is worth looking at.

Alpha is not carried over. LÖVE's source defaults the fourth argument to 1 whenever you leave it out, so the plain three-argument setColor(1, 1, 1) on the next line puts you back to fully opaque without your having to think about it. This is the one piece of graphics state that does not behave the way Activity 2.2 taught you to expect, and it behaves the more convenient way.

The font, meanwhile, is as sticky as ever. drawOverlay switches to the big font and switches back, and if it forgets the second half your score reads at forty-eight points from the next frame onward.

divider

Build

enemy.lua and collision.lua are untouched again. Everything here is main.lua.

Task 1: Three states and a doorbell

  • Add local gameState = "menu" to the state block.
  • Guard love.update with an early return. Do not indent the body.
  • Replace the silent reset with gameState = "gameover" when the last life goes.
  • Write love.keypressed. Space starts a game from either non-playing state; escape quits. LÖVE does not quit on escape by default — that only happens on its error screen, so this is yours to write.
  • Draw the title and the game-over prompt after the HUD, so they sit on top of everything.
  • Play it, die, and restart. You will land in a game with no lives that ends immediately. That is not your mistake, it is Task 2.
main.lua
-- main.lua


local Enemy = require("enemy")
local collision = require("collision")


local ship
local font
local player = { x = 400, y = 500, size = 40, speed = 300 }
local bullets = {}
local fireCooldown = 0
local enemies = {}
local spawnTimer = 0
local spawnEvery = 0.8
local score = 0
local lives = 3
local invuln = 0
local gameState = "menu"


function love.load()
  love.graphics.setBackgroundColor(0.05, 0.05, 0.1)
  math.randomseed(os.time())
  ship = love.graphics.newImage("ship.png")
  font = love.graphics.newFont(20)
  love.graphics.setFont(font)
end


function love.keypressed(key)
  if key == "escape" then
    love.event.quit()
  elseif key == "space" and gameState ~= "playing" then
    gameState = "playing"
  end
end


function love.update(dt)
  if gameState ~= "playing" then
    return
  end


  if love.keyboard.isDown("left", "a") then
    player.x = player.x - player.speed * dt
  end
  if love.keyboard.isDown("right", "d") then
    player.x = player.x + player.speed * dt
  end


  local half = player.size / 2
  player.x = math.max(half, math.min(love.graphics.getWidth() - half, player.x))


  fireCooldown = fireCooldown - dt
  invuln = invuln - dt


  if love.keyboard.isDown("space") and fireCooldown <= 0 then
    table.insert(bullets, { x = player.x, y = player.y - 30, size = 6, speed = 500 })
    fireCooldown = 0.15
  end


  for i = #bullets, 1, -1 do
    local b = bullets[i]
    b.y = b.y - b.speed * dt
    if b.y < -20 then
      table.remove(bullets, i)
    end
  end


  spawnTimer = spawnTimer - dt
  if spawnTimer <= 0 then
    table.insert(enemies, Enemy.new(math.random(40, love.graphics.getWidth() - 40)))
    spawnTimer = spawnEvery
  end


  for i = #enemies, 1, -1 do
    local e = enemies[i]
    e:update(dt)
    if e.y > love.graphics.getHeight() + 20 then
      table.remove(enemies, i)
    end
  end


  if invuln <= 0 then
    for i = #enemies, 1, -1 do
      if collision.overlaps(enemies[i], player) then
        table.remove(enemies, i)
        lives = lives - 1
        invuln = 2
        if lives <= 0 then
          gameState = "gameover"
        end
        break
      end
    end
  end


  for i = #enemies, 1, -1 do
    for j = #bullets, 1, -1 do
      if collision.overlaps(enemies[i], bullets[j]) then
        table.remove(bullets, j)
        enemies[i].hp = enemies[i].hp - 1
        if enemies[i].hp <= 0 then
          table.remove(enemies, i)
          score = score + 1
        end
        break
      end
    end
  end
end


local function drawHud()
  love.graphics.setColor(1, 1, 1)
  love.graphics.print("Score: " .. score, 10, 12)


  for i = 1, lives do
    local x = love.graphics.getWidth() - 24 - (i - 1) * 30
    love.graphics.draw(ship, x, 24, 0, 1, 1, ship:getWidth() / 2, ship:getHeight() / 2)
  end
end


function love.draw()
  local blink = invuln > 0 and math.floor(invuln * 10) % 2 == 1


  if not blink then
    love.graphics.setColor(1, 1, 1)
    love.graphics.draw(ship, player.x, player.y, 0, 2, 2, ship:getWidth() / 2, ship:getHeight() / 2)
  end


  love.graphics.setColor(1, 0.9, 0.3)
  for _, b in ipairs(bullets) do
    love.graphics.rectangle("fill", b.x - 2, b.y - 8, 4, 16)
  end


  for _, e in ipairs(enemies) do
    e:draw()
  end


  drawHud()


  if gameState == "menu" then
    love.graphics.setColor(1, 1, 1)
    love.graphics.printf("SKYNEST", 0, 220, love.graphics.getWidth(), "center")
    love.graphics.printf("Press space to play", 0, 300, love.graphics.getWidth(), "center")
  elseif gameState == "gameover" then
    love.graphics.setColor(1, 1, 1)
    love.graphics.printf("GAME OVER", 0, 220, love.graphics.getWidth(), "center")
    love.graphics.printf("Press space to play again", 0, 300, love.graphics.getWidth(), "center")
  end
end

Task 2: One place that starts a game

  • Split the state block: assets and settings keep their values, and everything that belongs to a single run becomes a bare local with no initializer.
  • Write resetGame() above love.load and give every one of those variables its starting value there. Build the player as a fresh table.
  • Call it from love.load and from love.keypressed. Two callers, one definition of what a new game is.
  • Restart and count the icons. Three, every time, however you got there.
main.lua
-- main.lua


local Enemy = require("enemy")
local collision = require("collision")


local ship
local font
local spawnEvery = 0.8
local gameState = "menu"


local player
local bullets
local fireCooldown
local enemies
local spawnTimer
local score
local lives
local invuln


local function resetGame()
  player = { x = 400, y = 500, size = 40, speed = 300 }
  bullets = {}
  fireCooldown = 0
  enemies = {}
  spawnTimer = 0
  score = 0
  lives = 3
  invuln = 0
end


function love.load()
  love.graphics.setBackgroundColor(0.05, 0.05, 0.1)
  math.randomseed(os.time())
  ship = love.graphics.newImage("ship.png")
  font = love.graphics.newFont(20)
  love.graphics.setFont(font)
  resetGame()
end


function love.keypressed(key)
  if key == "escape" then
    love.event.quit()
  elseif key == "space" and gameState ~= "playing" then
    resetGame()
    gameState = "playing"
  end
end


function love.update(dt)
  if gameState ~= "playing" then
    return
  end


  if love.keyboard.isDown("left", "a") then
    player.x = player.x - player.speed * dt
  end
  if love.keyboard.isDown("right", "d") then
    player.x = player.x + player.speed * dt
  end


  local half = player.size / 2
  player.x = math.max(half, math.min(love.graphics.getWidth() - half, player.x))


  fireCooldown = fireCooldown - dt
  invuln = invuln - dt


  if love.keyboard.isDown("space") and fireCooldown <= 0 then
    table.insert(bullets, { x = player.x, y = player.y - 30, size = 6, speed = 500 })
    fireCooldown = 0.15
  end


  for i = #bullets, 1, -1 do
    local b = bullets[i]
    b.y = b.y - b.speed * dt
    if b.y < -20 then
      table.remove(bullets, i)
    end
  end


  spawnTimer = spawnTimer - dt
  if spawnTimer <= 0 then
    table.insert(enemies, Enemy.new(math.random(40, love.graphics.getWidth() - 40)))
    spawnTimer = spawnEvery
  end


  for i = #enemies, 1, -1 do
    local e = enemies[i]
    e:update(dt)
    if e.y > love.graphics.getHeight() + 20 then
      table.remove(enemies, i)
    end
  end


  if invuln <= 0 then
    for i = #enemies, 1, -1 do
      if collision.overlaps(enemies[i], player) then
        table.remove(enemies, i)
        lives = lives - 1
        invuln = 2
        if lives <= 0 then
          gameState = "gameover"
        end
        break
      end
    end
  end


  for i = #enemies, 1, -1 do
    for j = #bullets, 1, -1 do
      if collision.overlaps(enemies[i], bullets[j]) then
        table.remove(bullets, j)
        enemies[i].hp = enemies[i].hp - 1
        if enemies[i].hp <= 0 then
          table.remove(enemies, i)
          score = score + 1
        end
        break
      end
    end
  end
end


local function drawHud()
  love.graphics.setColor(1, 1, 1)
  love.graphics.print("Score: " .. score, 10, 12)


  for i = 1, lives do
    local x = love.graphics.getWidth() - 24 - (i - 1) * 30
    love.graphics.draw(ship, x, 24, 0, 1, 1, ship:getWidth() / 2, ship:getHeight() / 2)
  end
end


function love.draw()
  local blink = invuln > 0 and math.floor(invuln * 10) % 2 == 1


  if not blink then
    love.graphics.setColor(1, 1, 1)
    love.graphics.draw(ship, player.x, player.y, 0, 2, 2, ship:getWidth() / 2, ship:getHeight() / 2)
  end


  love.graphics.setColor(1, 0.9, 0.3)
  for _, b in ipairs(bullets) do
    love.graphics.rectangle("fill", b.x - 2, b.y - 8, 4, 16)
  end


  for _, e in ipairs(enemies) do
    e:draw()
  end


  drawHud()


  if gameState == "menu" then
    love.graphics.setColor(1, 1, 1)
    love.graphics.printf("SKYNEST", 0, 220, love.graphics.getWidth(), "center")
    love.graphics.printf("Press space to play", 0, 300, love.graphics.getWidth(), "center")
  elseif gameState == "gameover" then
    love.graphics.setColor(1, 1, 1)
    love.graphics.printf("GAME OVER", 0, 220, love.graphics.getWidth(), "center")
    love.graphics.printf("Press space to play again", 0, 300, love.graphics.getWidth(), "center")
  end
end

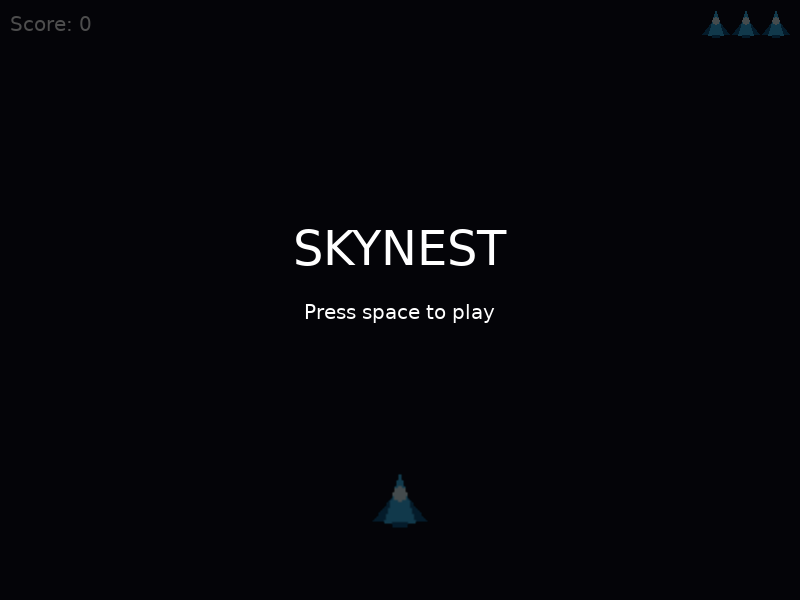

Task 3: Screens worth looking at

  • Add a titleFont at size 48, built in love.load beside the one you already have.
  • Write drawOverlay(title, subtitle): a dim full-window rectangle, the title in the big font, the subtitle in the normal one. Set the font back before you leave.
  • Both screens now cost one line each, and the game-over line can show the score because the score is still sitting there.

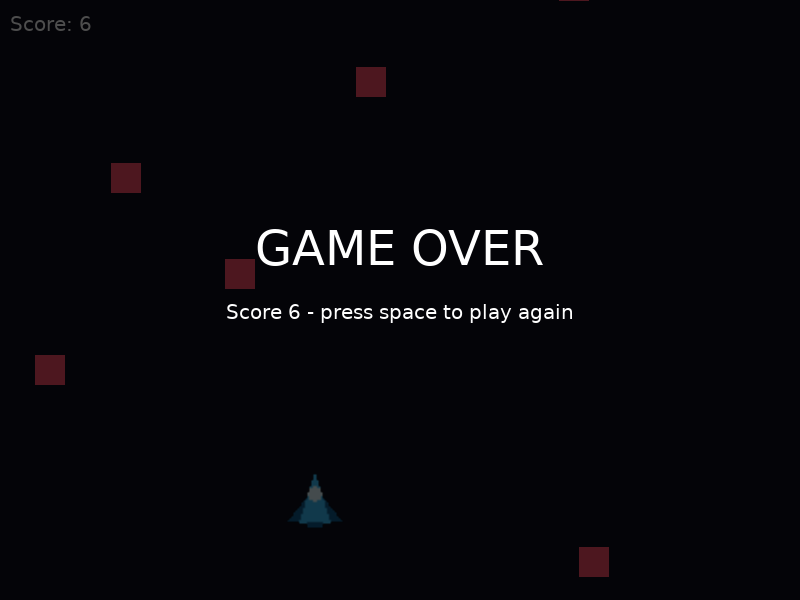

  • Die on purpose and look at it. Your last frame is still visible behind the dimming, because you never stopped drawing it.
main.lua
-- main.lua


local Enemy = require("enemy")
local collision = require("collision")


local ship
local font
local titleFont
local spawnEvery = 0.8
local gameState = "menu"


local player
local bullets
local fireCooldown
local enemies
local spawnTimer
local score
local lives
local invuln


local function resetGame()
  player = { x = 400, y = 500, size = 40, speed = 300 }
  bullets = {}
  fireCooldown = 0
  enemies = {}
  spawnTimer = 0
  score = 0
  lives = 3
  invuln = 0
end


function love.load()
  love.graphics.setBackgroundColor(0.05, 0.05, 0.1)
  math.randomseed(os.time())
  ship = love.graphics.newImage("ship.png")
  font = love.graphics.newFont(20)
  titleFont = love.graphics.newFont(48)
  love.graphics.setFont(font)
  resetGame()
end


function love.keypressed(key)
  if key == "escape" then
    love.event.quit()
  elseif key == "space" and gameState ~= "playing" then
    resetGame()
    gameState = "playing"
  end
end


function love.update(dt)
  if gameState ~= "playing" then
    return
  end


  if love.keyboard.isDown("left", "a") then
    player.x = player.x - player.speed * dt
  end
  if love.keyboard.isDown("right", "d") then
    player.x = player.x + player.speed * dt
  end


  local half = player.size / 2
  player.x = math.max(half, math.min(love.graphics.getWidth() - half, player.x))


  fireCooldown = fireCooldown - dt
  invuln = invuln - dt


  if love.keyboard.isDown("space") and fireCooldown <= 0 then
    table.insert(bullets, { x = player.x, y = player.y - 30, size = 6, speed = 500 })
    fireCooldown = 0.15
  end


  for i = #bullets, 1, -1 do
    local b = bullets[i]
    b.y = b.y - b.speed * dt
    if b.y < -20 then
      table.remove(bullets, i)
    end
  end


  spawnTimer = spawnTimer - dt
  if spawnTimer <= 0 then
    table.insert(enemies, Enemy.new(math.random(40, love.graphics.getWidth() - 40)))
    spawnTimer = spawnEvery
  end


  for i = #enemies, 1, -1 do
    local e = enemies[i]
    e:update(dt)
    if e.y > love.graphics.getHeight() + 20 then
      table.remove(enemies, i)
    end
  end


  if invuln <= 0 then
    for i = #enemies, 1, -1 do
      if collision.overlaps(enemies[i], player) then
        table.remove(enemies, i)
        lives = lives - 1
        invuln = 2
        if lives <= 0 then
          gameState = "gameover"
        end
        break
      end
    end
  end


  for i = #enemies, 1, -1 do
    for j = #bullets, 1, -1 do
      if collision.overlaps(enemies[i], bullets[j]) then
        table.remove(bullets, j)
        enemies[i].hp = enemies[i].hp - 1
        if enemies[i].hp <= 0 then
          table.remove(enemies, i)
          score = score + 1
        end
        break
      end
    end
  end
end


local function drawHud()
  love.graphics.setColor(1, 1, 1)
  love.graphics.print("Score: " .. score, 10, 12)


  for i = 1, lives do
    local x = love.graphics.getWidth() - 24 - (i - 1) * 30
    love.graphics.draw(ship, x, 24, 0, 1, 1, ship:getWidth() / 2, ship:getHeight() / 2)
  end
end


local function drawOverlay(title, subtitle)
  love.graphics.setColor(0, 0, 0, 0.7)
  love.graphics.rectangle("fill", 0, 0, love.graphics.getWidth(), love.graphics.getHeight())


  love.graphics.setColor(1, 1, 1)
  love.graphics.setFont(titleFont)
  love.graphics.printf(title, 0, 220, love.graphics.getWidth(), "center")


  love.graphics.setFont(font)
  love.graphics.printf(subtitle, 0, 300, love.graphics.getWidth(), "center")
end


function love.draw()
  local blink = invuln > 0 and math.floor(invuln * 10) % 2 == 1


  if not blink then
    love.graphics.setColor(1, 1, 1)
    love.graphics.draw(ship, player.x, player.y, 0, 2, 2, ship:getWidth() / 2, ship:getHeight() / 2)
  end


  love.graphics.setColor(1, 0.9, 0.3)
  for _, b in ipairs(bullets) do
    love.graphics.rectangle("fill", b.x - 2, b.y - 8, 4, 16)
  end


  for _, e in ipairs(enemies) do
    e:draw()
  end


  drawHud()


  if gameState == "menu" then
    drawOverlay("SKYNEST", "Press space to play")
  elseif gameState == "gameover" then
    drawOverlay("GAME OVER", "Score " .. score .. " - press space to play again")
  end
end

Challenge (Optional)

  • Add a paused state on the p key. Update already returns for anything that is not "playing", so pausing costs you one branch in love.keypressed and one in love.draw. That is the early return paying for itself. Note that pause must not call resetGame, so the one-branch keypressed needs splitting.
  • Keep a best score across runs. The interesting part is not the code, it is deciding that bestScore belongs in the top half of the state block and never inside resetGame. It is the same lifetime question as everything else on this page.
  • Add a "ready" state that counts three, two, one before play starts. It needs a timer counted down in update, which means update can no longer return on every non-playing state — the guard becomes a choice rather than a gate.
  • Make escape return to the menu while playing and quit only from the menu. Two lines, and it is how nearly every game you have played behaves.
divider

Check Your Work

The Skynest title screen with the prompt to press space to play

The menu. The HUD is under the overlay rather than hidden by it, which is why the score is dimmed instead of missing.

The game over screen with the frozen game world behind it

Game over. The world behind the text is frozen because update returns early, and the life icons are gone because the loop now runs from 1 to 0.

  • The game opens on a title over a dimmed, motionless field. Nothing spawns and nothing falls until you press space.
  • Your third life ends the run. GAME OVER appears over your frozen last moment, with the score you finished on.
  • Space starts a fresh run: three icons, score zero, an empty sky.
  • Escape quits from anywhere.

If you never see the game-over screen, the restart is reading isDown rather than waiting for keypressed. If the second game has no lives, resetGame is not being called from love.keypressed. If the world vanishes behind solid black, the overlay's setColor is missing its fourth argument. And if your score suddenly renders enormous, drawOverlay never set the font back.

One thing worth noticing before you move on: the game is finished. It begins, it can be lost, and it can be played again. Everything after this activity makes it better rather than more complete.

PreviousNext: Sound and Polish
